Shower Cubicles

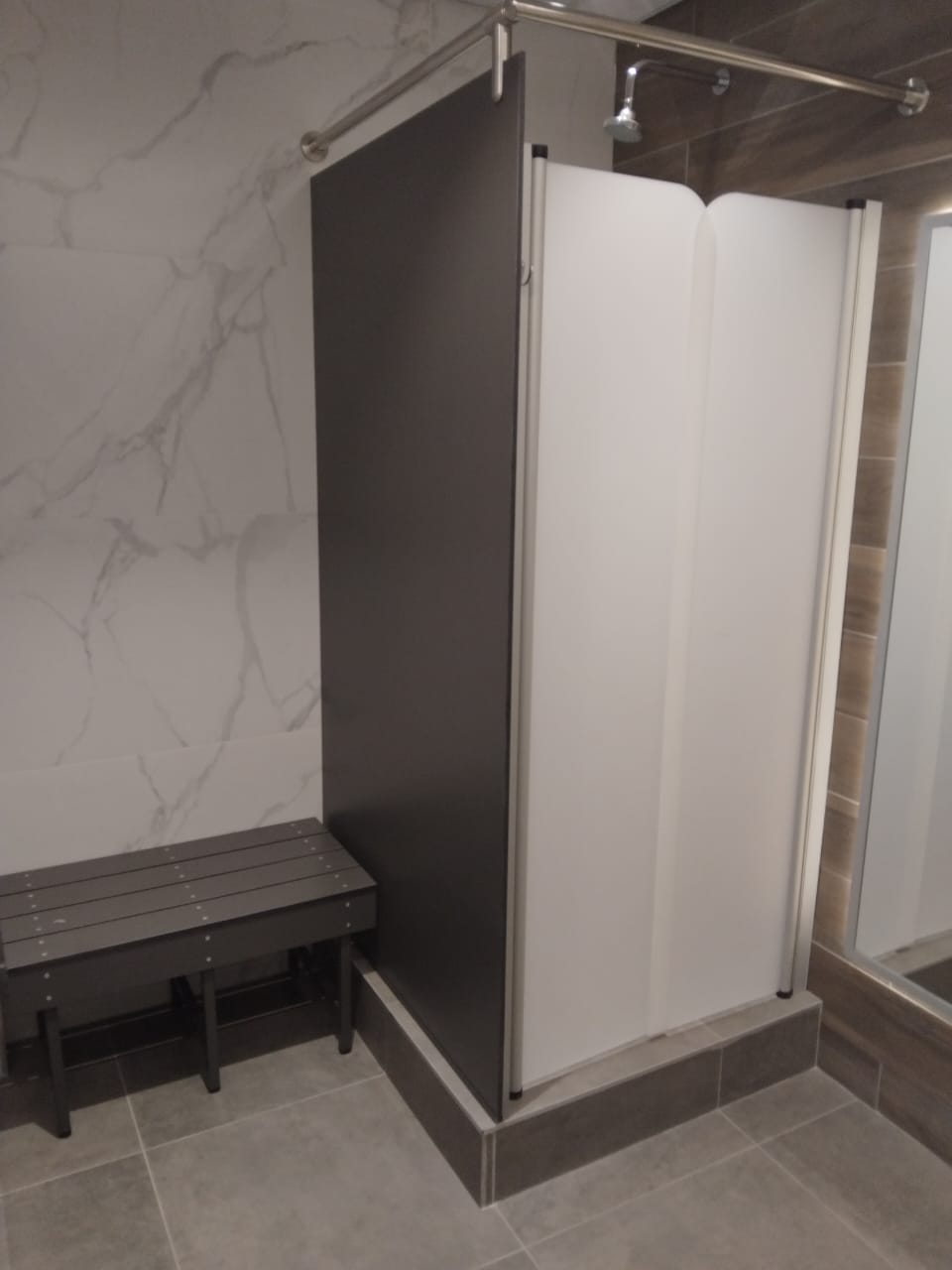

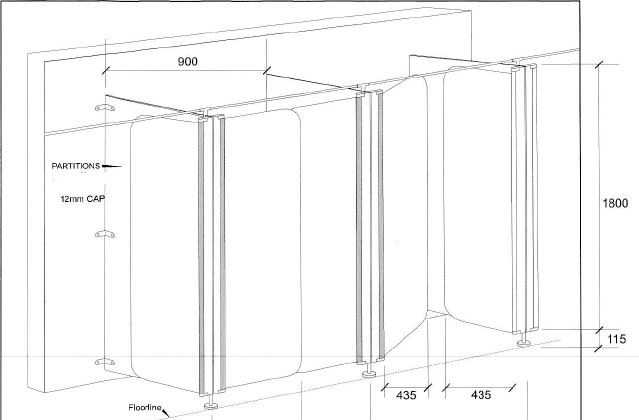

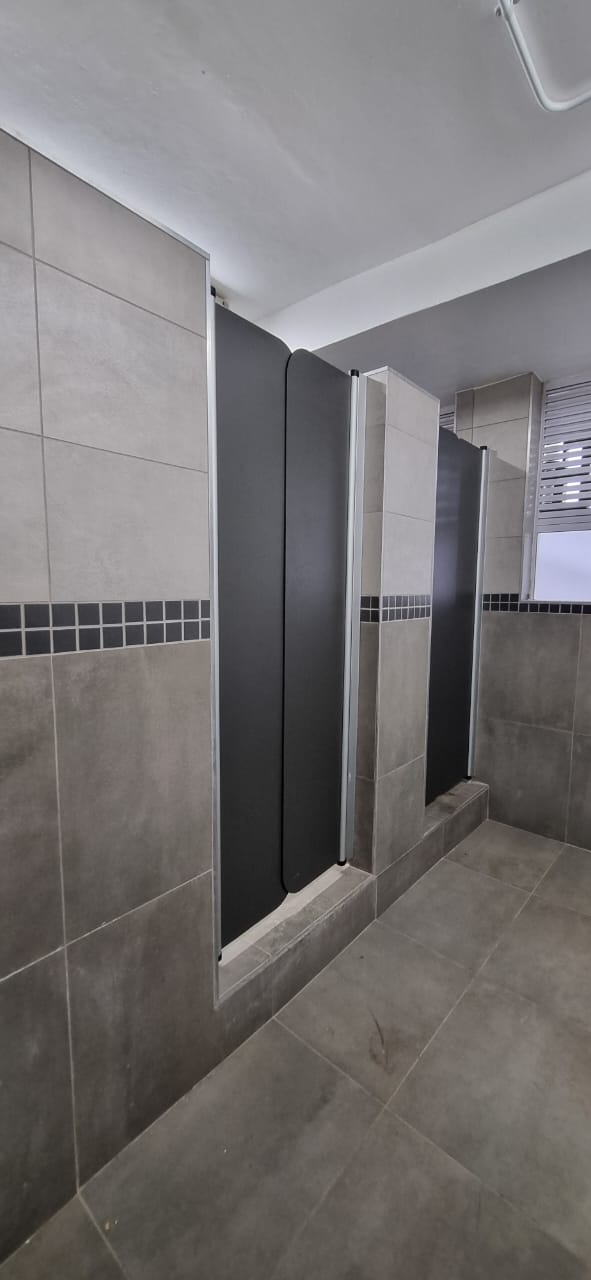

SALOON DOOR SHOWER CUBICLES

A saloon door system manufactured using either Cast Acrylic Perspex or Compact High Pressure Laminate fixed to our partitions using a unique extrusion.
All ironmongery in 304 and 316 grade stainless steel.

BOARD TYPES
12mm Compact High Pressure Laminate or 5mm Cast Acrylic Perspex.

Specifications for Professionals

Partitions

For manufacture delivery and installation of Shower Partitions manufactured using 12mm Compact High-Pressure Laminate or Cast Acrylic Perspex (colour: standard stock held colour) for partitions, in Cube-Exclusive Range 1 (code: CSSDSPART). This is a modular, frameless system with overhead brace and hanging clamp (code CS13HNGCRS / CS13HNGBRKT), floor anchored with adjustable supporting feet (code CS13FT150) and fixed to walls using Aluminium U-Chanel (Code CS12UCH-NA).

CSSALOON

For manufacture, delivery and installation of shower saloon door sets code: (code: CSSDS) manufactured using an aluminium extrusion system fixed to walls or partitions with 5mm Cast Acrylic Perspex saloon doors (Colour: Frosted White) or 4mm Compact High Pressure Laminate (colour White) slotted in to the extrusion and a nylon hinge system.

Standard Sizes

Partitions – 1800 x 1830
Doors – 900 Opening

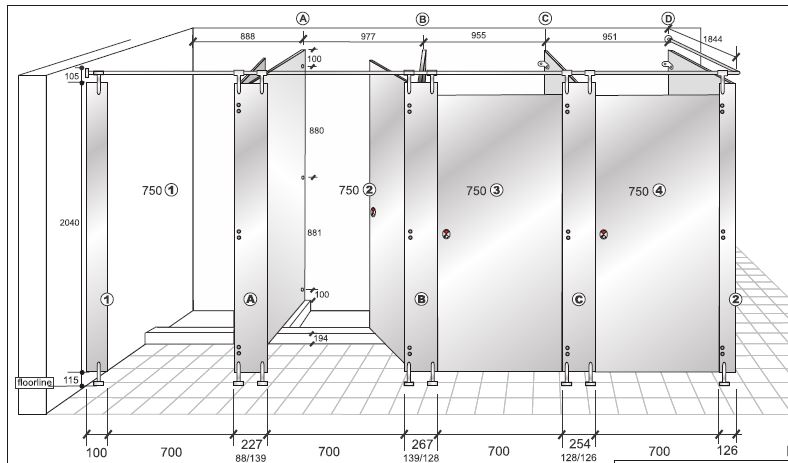

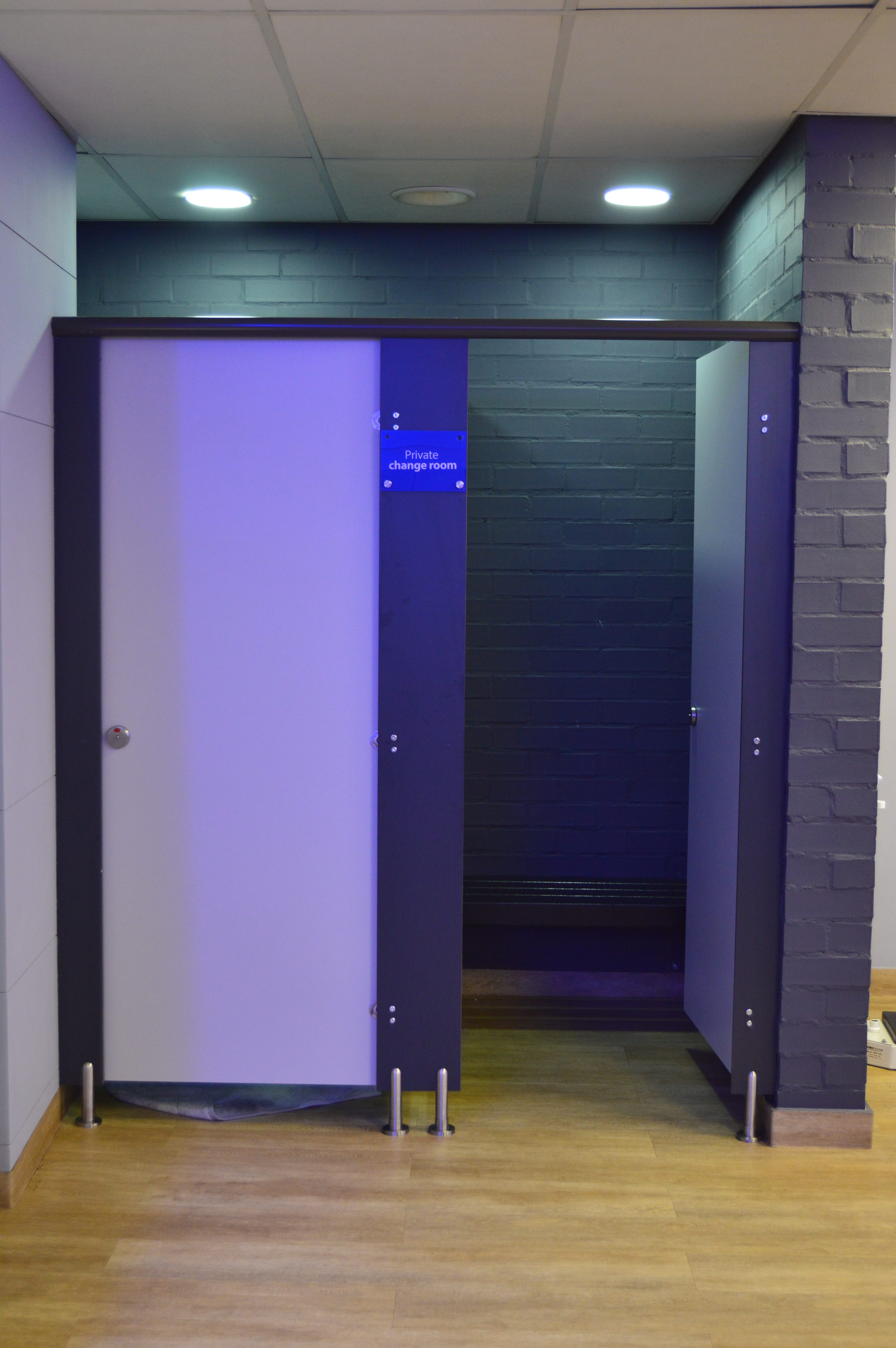

SHOWER CUBICLE

A modular frameless cubicle system with overhead rail and hanging clamps with adjustable supporting feet or fixed to existing brick walls.
All ironmongery in 304 and 316 grade stainless steel.

BOARD TYPES
12mm Compact High Pressure Laminate.

Specifications for Professionals

For manufacture, delivery and installation of shower cubicles manufactured using either 12mm Compact High Pressure Laminate (Colour: to be confirmed), in Cube-Exclusive Overlap (code: CSCHPLCEO). This is a modular, frameless system with overhead brace and hanging clamp (code: CS13HNGBRKT), floor anchored with adjustable supporting feet (code: CS13FT150) and bracketed to walls and pilasters using stainless steel brackets (code CS3X10HLCRNBKT).

All fixings and ironmongery in aluminium, 304 and 316 grade stainless steel as specified. Ironmongery to include hat and coat hook (code: CSH&CHK) with buffer stopper, indicator bolt (code: CSSM04M012) and rise and fall butt auto open hinge (code: CSSM03M012).
