Toilet Cubicles

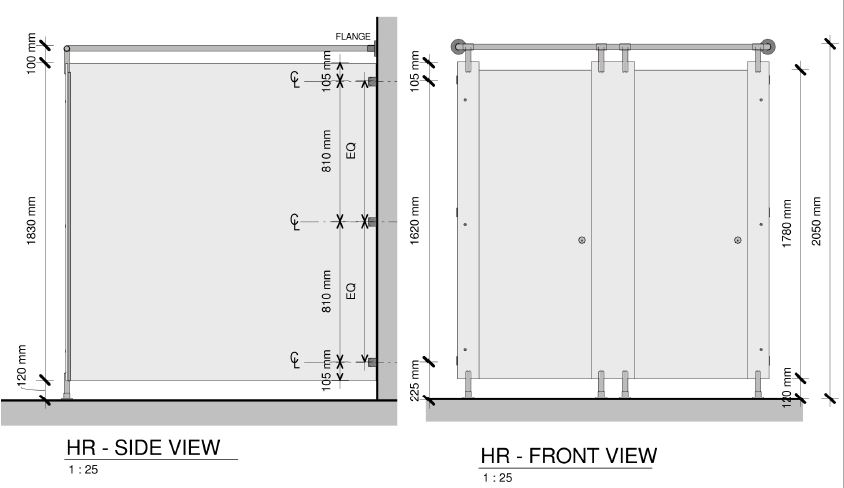

CUBE EXCLUSIVE RANGE
A modular frameless system with overhead rail and hanging clamps, with adjustable supporting feet and all ironmongery in 304 or 316 grade stainless steel.
This is a durable and robust system, suitable for shopping malls, offices, hospitals, gymnasiums and educational institutions.
BOARD TYPES
12mm Compact High Pressure Laminate, 12mm Compact Density Fibre Board or 16mm Melamine Faced Particle Board.
Specifications for Professionals
For manufacture, delivery and installation of toilet cubicles using 12mm Compact High-Pressure Laminate or 12mm Compact Density Fibre Board or 16mm Melamine Faced Particle Board (Code: CSMFPBCEO), in Cube-Exclusive Overlap (code: CSCHPLCEO / CSCDFBCEO). This is a modular, frameless system with overhead brace and hanging clamp (code: CS13HNGBRKT / CS18HNGBRKT), floor anchored with adjustable supporting feet (code: CS13FT150 / CS18FT150) fixed to front mid and end panels and bracketed to walls and pilasters using stainless steel brackets (code: CS3X10HLCRNBKT).
All fixings and ironmongery in aluminium and 304 and 316 grade stainless steel as specified. Ironmongery to include hat and coat hook (code: CSH&CHK) with buffer stopper, indicator bolt (code: CSSM04M012) and rise and fall butt auto open hinge (code: CSSM03M012).
Please contact our offices for alternative specifications for Toilet Cibicles.
Standard Sizes
Partitions – 1800 x 1830
Mids – 250 x 1830
Ends – 125 x 1830
Doors – 750 x 1780
Image Gallery

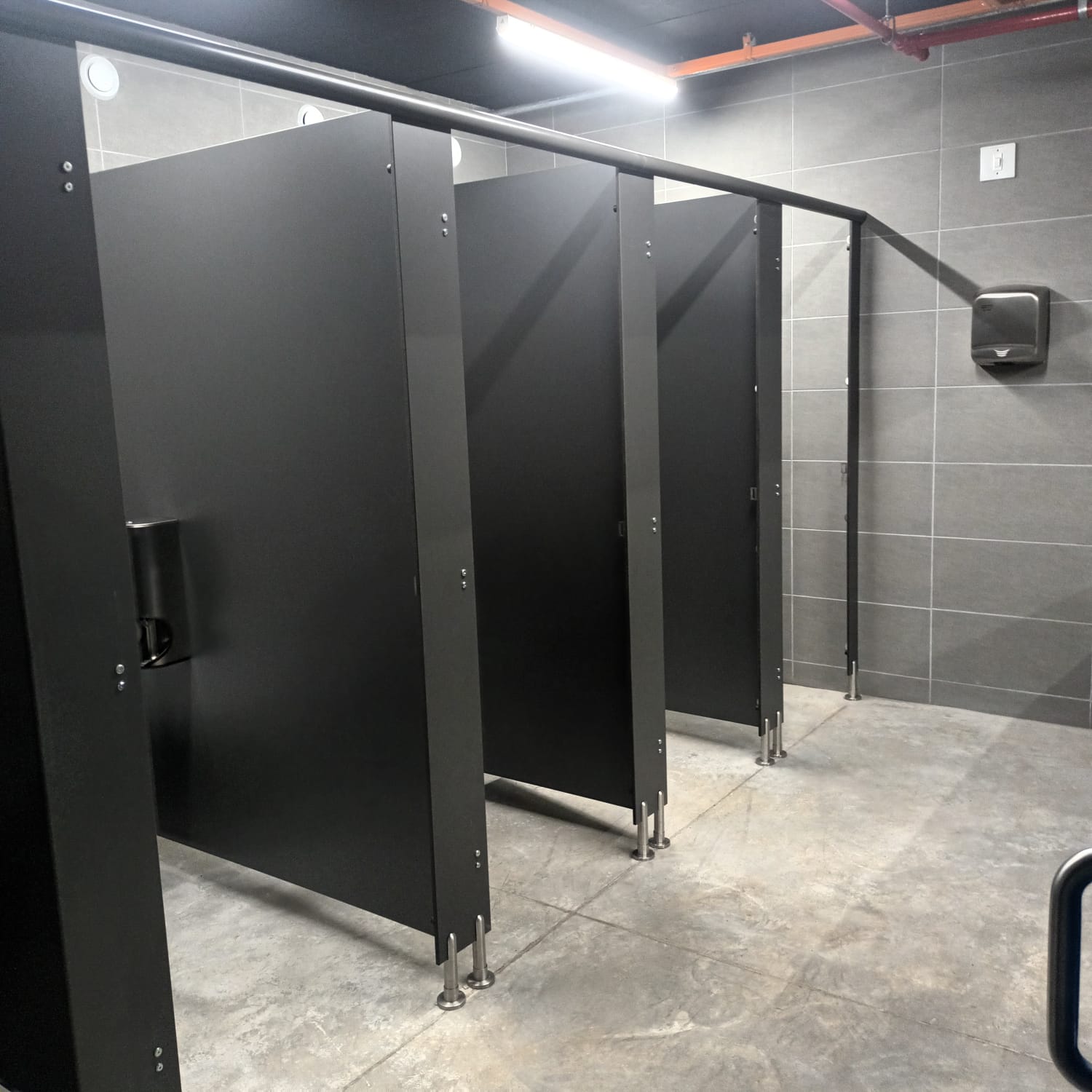

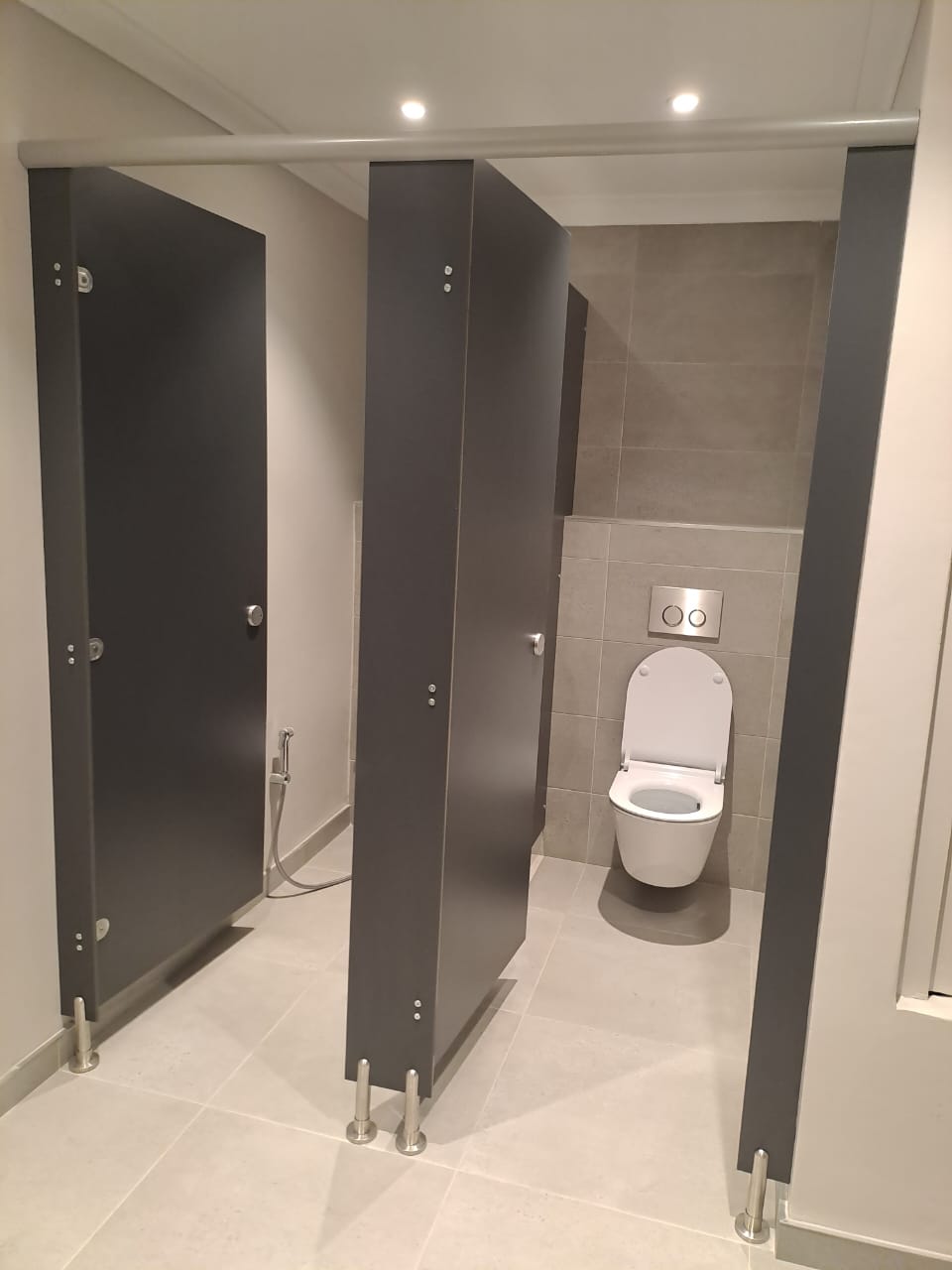

CUBE STANDARD RANGE
A modular frameless system with supporting powder coated aluminium D shaped headrail with partitions, mid and end panels fixed at the same height and floor anchored with adjustable supporting feet. All ironmongery in 304 and 316 grade stainless steel.
This is a durable and robust system, suitable for shopping malls, offices, hospitals, gymnasiums and educational institutions.
BOARD TYPES
12mm Compact High Pressure Laminate, 12mm Compact Density Fibre Board or 16mm Melamine Faced Particle Board.
Specifications for Professionals
For manufacture, delivery and installation of toilet cubicles manufactured using 12mm Compact High Pressure Laminate or 12mm Compact Density Fibre Board or 16mm Melamine Faced Particle Board (colour: standard stock colour range), in Cube-Standard Overlap (code: CSCHPLCSO / CSCDFBCSO / CSMFPBCSO). This is a modular, frameless system with supporting powder coated aluminium head rail, (powder coating colours: Charcoal / New Silver), floor anchored with adjustable supporting feet (code: CS13FT150 / CS18FT150) and bracketed to walls and pilasters using stainless steel brackets (code: CS3X10HLCRNBKT).
All fixings and ironmongery in aluminium, 304 and 316 grade stainless steel as specified. Ironmongery to include hat and coat hook (code: CSH&CHK) with buffer stopper, indicator bolt (code CSSM04M012) and rise and fall butt auto open hinge (code: CSSM03M012) / (CSRH/LHHNGACPB).
Please contact our offices for alternative specifications for Toilet Cubicles.
Standard Sizes
Partitions – 1800 x 1935
Mids – 250 x 1935
Ends – 125 x 1935
Doors – 750 x 1930
Image Gallery

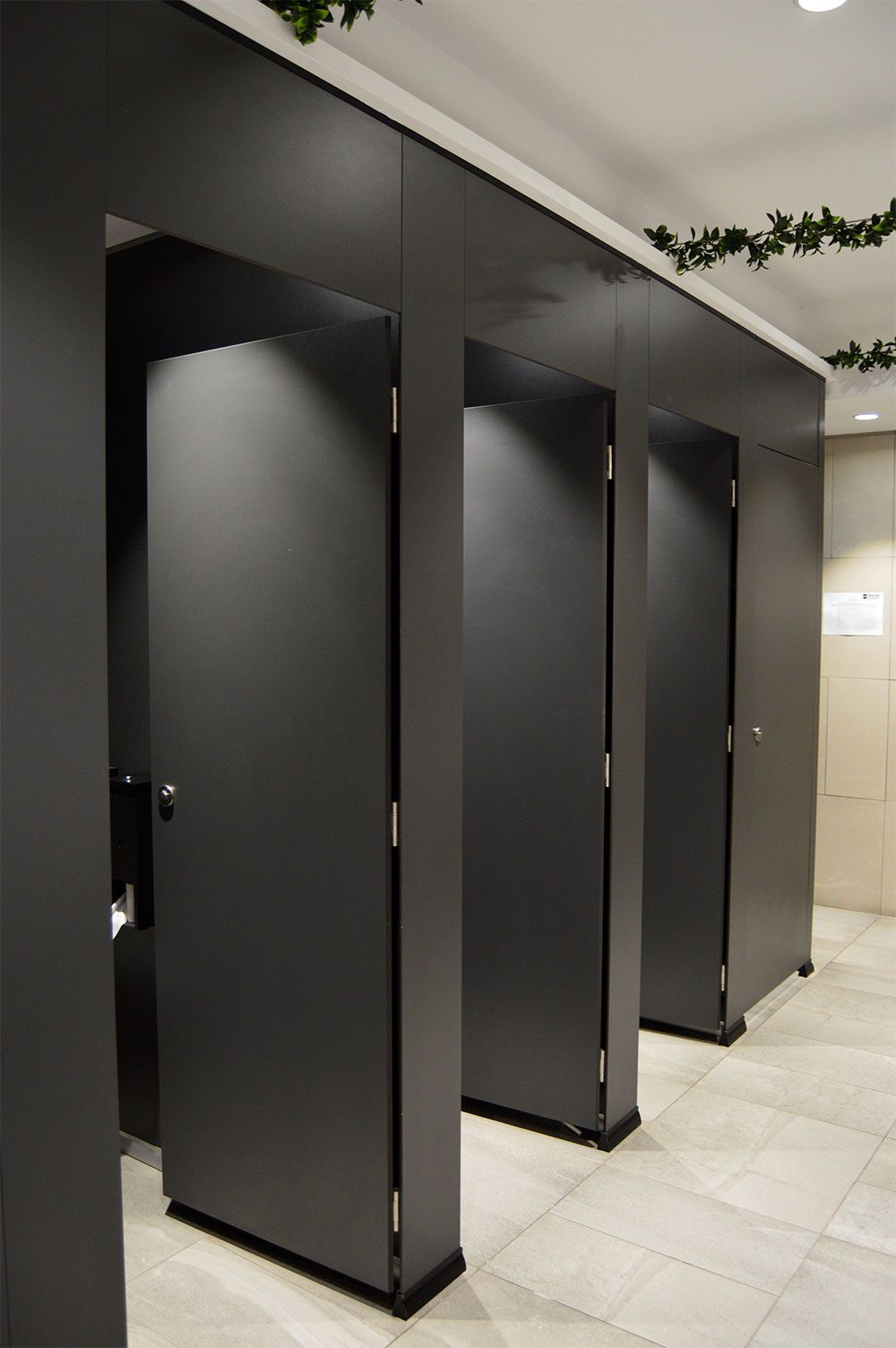

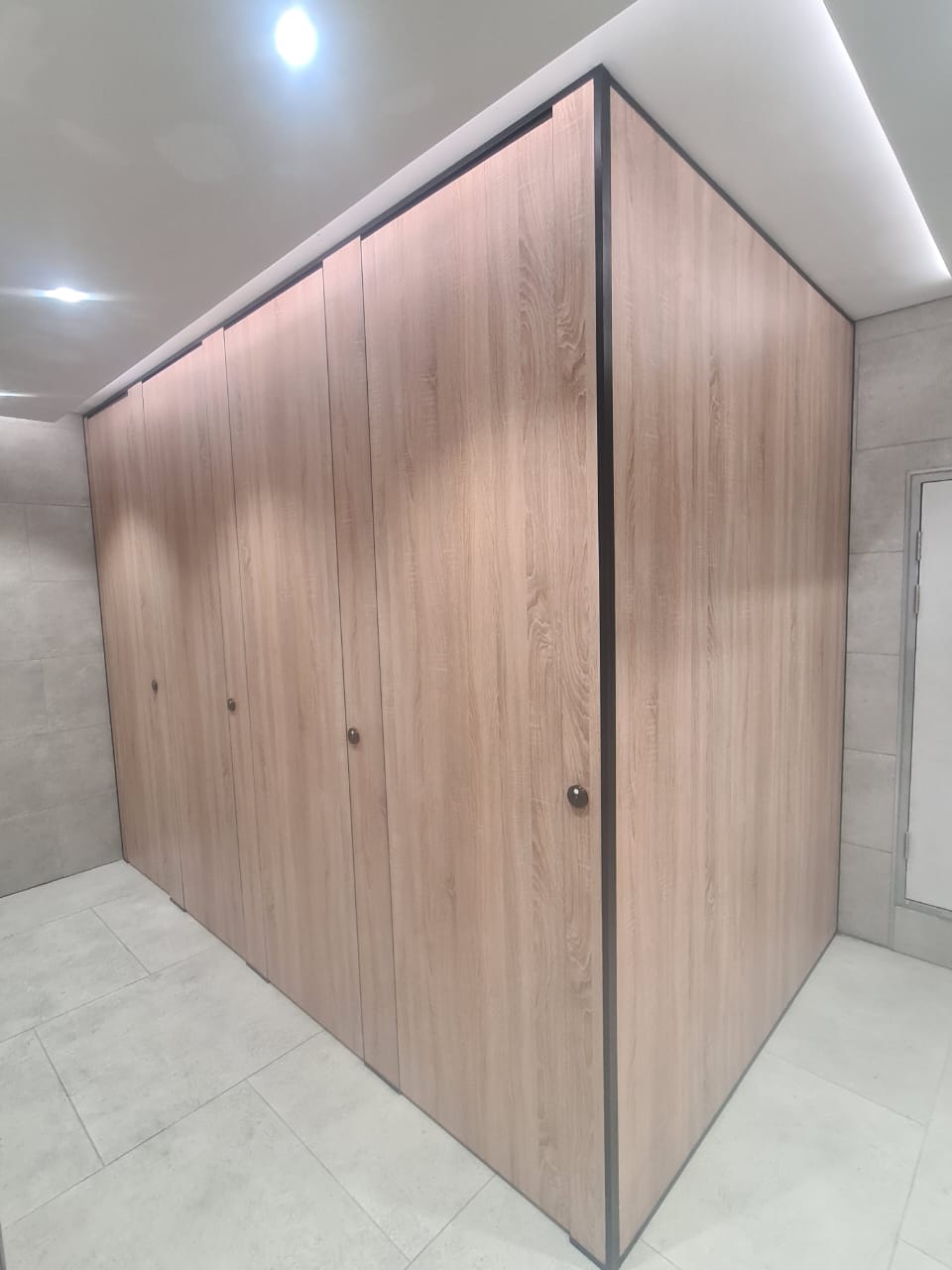

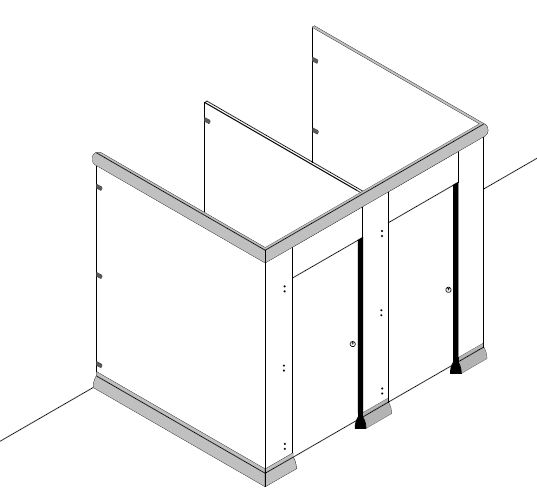

CUBE MAX RANGE
An exciting range where complete design flexibility is available to suit all buildings and specific client requirements.
Secured to ceiling and floor with powder coated aluminium extrusion or floor anchored with our stainless steel feet, this range has numerous design options available.
All ironmongery in 304 and 316 grade stainless steel.
BOARD TYPES
12mm Compact High Pressure Laminate or 12mm Compact Density Fibre Board.
Specifications for Professionals
For manufacture, delivery and installation of toilet cubicles manufactured using 12mm Compact High Pressure Laminate or 12mm Compact Density Fibre Board (colour: from stock-held colour range), in CubeMax Overlap (code: CSCHPLCMO / CSCDFBCMO).
This is a modular, frameless system which is supported with end and mid panels fixing in to floor using powder coated aluminium extrusion or adjustable supporting feet (code: CS13FT150) and anchors to ceiling using powder coated aluminium extrusion (powder coating colours: Traffic Black / Charcoal / New Silver / White Aluminium) and bracketed to walls and partitions using stainless steel brackets (code: CS3X10HLCRNBKT) with concealed fixings where possible.
All fixings and ironmongery in aluminium, 304 and 316 grade stainless steel as specified. Ironmongery to include hat and coat hook (code: CSH&CHK) with buffer stopper, indicator bolt (code: CSSM04M012) and rise and fall butt auto close hinge (code: CSSM03M012).
Note: Finished floor height of partitions to be a maximum of 2580mm, with partition height 2480mm, fixed 50mm off the floor and from the ceiling.
Standard Sizes
Partitions – 1800 x 2400
Mids – 250 x 2400
Ends – 125 x 2350
Doors – 750 x 2000
Doors Infills – 700 x 400
Image Gallery

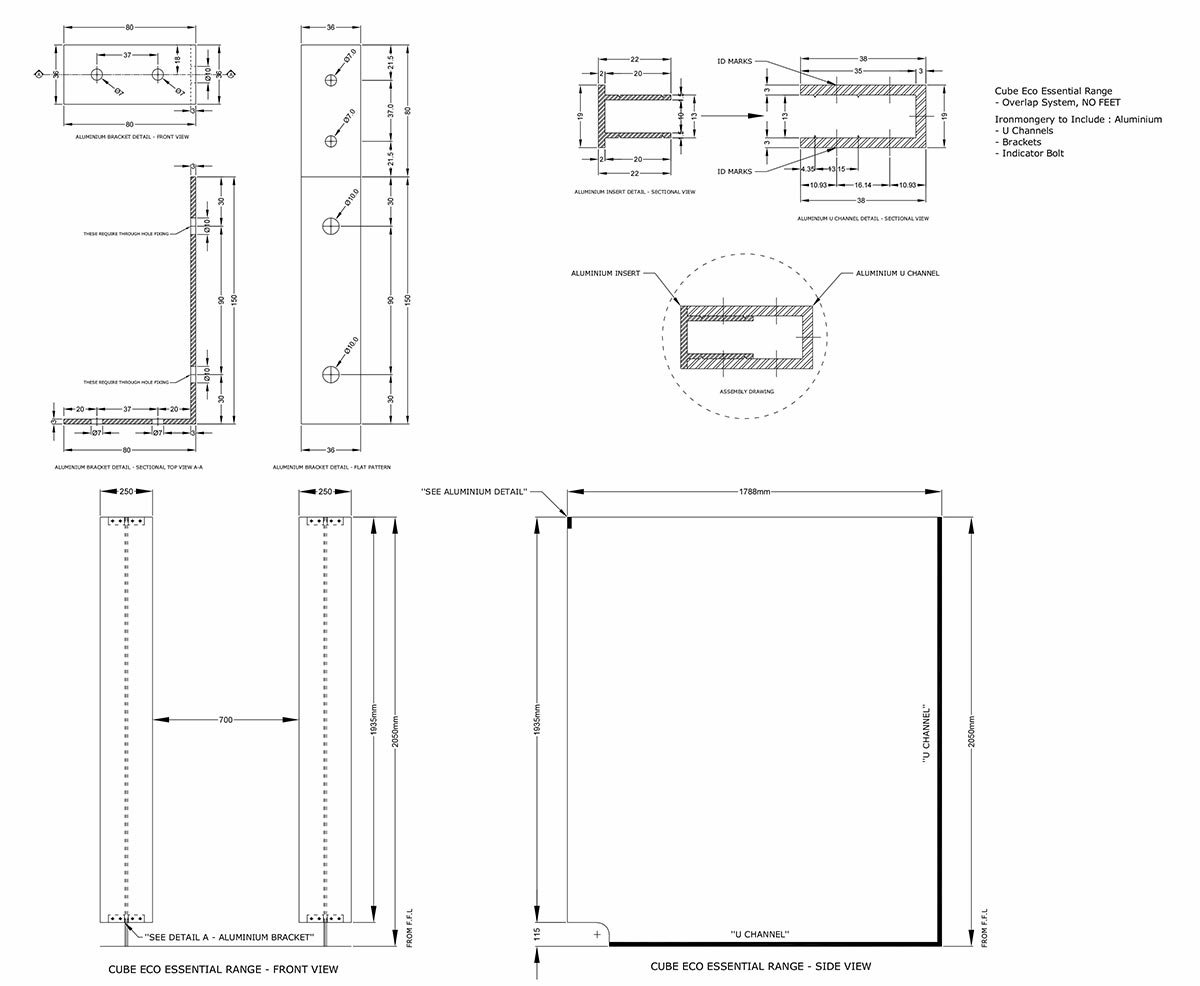

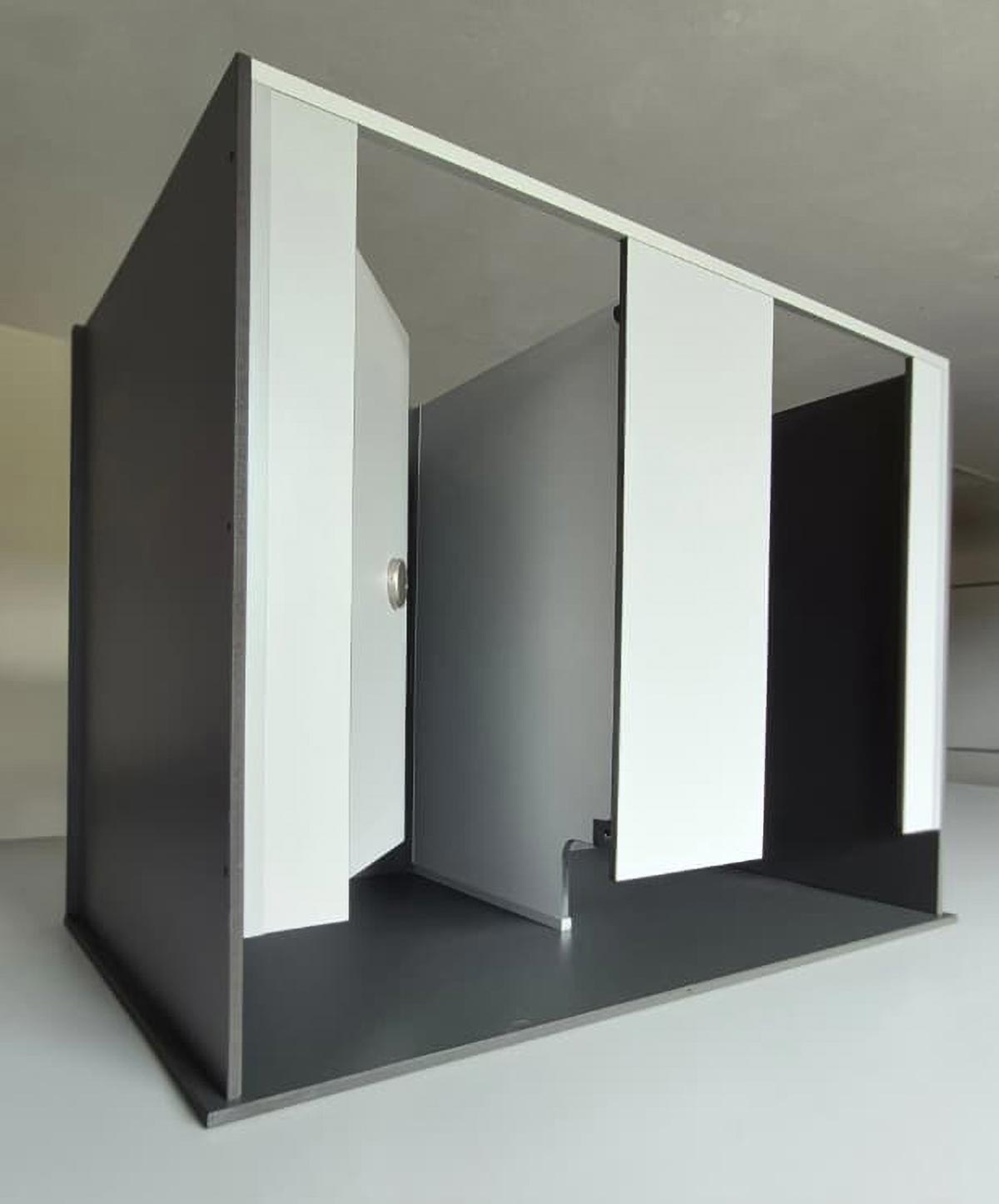

CUBE ECO ESSENTIAL RANGE
An economical, modular, face-floating (off the floor) cubicle system with a powder-coated aluminium U-shaped headrail and aluminium U-channel framework. The front edges of the partitions align with the mid and end panels to create a clean, modern floating appearance, while floor-mounted sections provide additional stability. Available in a convenient flat-pack format for simplified transportation, handling and installation with minimal lead times.
This is a durable and economical system, suitable for shopping malls, offices, hospitals, healthcare facilities, gymnasiums and educational institutions.
BOARD TYPES
12mm Compact High Pressure Laminate (CHPL)
Specifications for Professionals
Cube Eco Essential is an economical, modular, face-floating cubicle system designed to provide a durable and practical solution without compromising on functionality. Very importantly, this range is offered in a flat-pack option with minimal lead times.
The system features a powder-coated aluminium U-shaped headrail positioned between the mid and end partitions, providing structural stability and a clean, modern appearance. The front edges of the partitions align with the mids and end, namely floating, whilst the remaining partition sections are floor-mounted. Mid partitions and wall connections are securely anchored within aluminium U-channels to ensure strength and long-term performance.
Aluminium ironmongery is utilised throughout the system as a cost-effective alternative to stainless steel, delivering durability while maintaining affordability.
The aluminium U-channel framework provides additional structural reinforcement and enables the system to be supplied in a convenient flat-pack format, simplifying transportation, handling, and on-site installation.
Manufactured from 12 mm Compact High Pressure Laminate (CHPL), Cube Eco Essential offers a robust, hygienic, and economical cubicle solution suitable for a wide range of applications, including shopping centres, corporate offices, hospitals, healthcare facilities, gymnasiums and educational institutions.
Image Gallery
